Spuhr SP Gen3 Extended Cantilever Mount (Picatinny)

The Spuhr SP Gen3 Extended Cantilever Mount (Picatinny) places a riflescope 70 mm (2.76") further forward than a non-cantilever mount. It comes in three heights, each in 30 mm or 34 mm ring diameter, plus a 6 MIL long-range version.

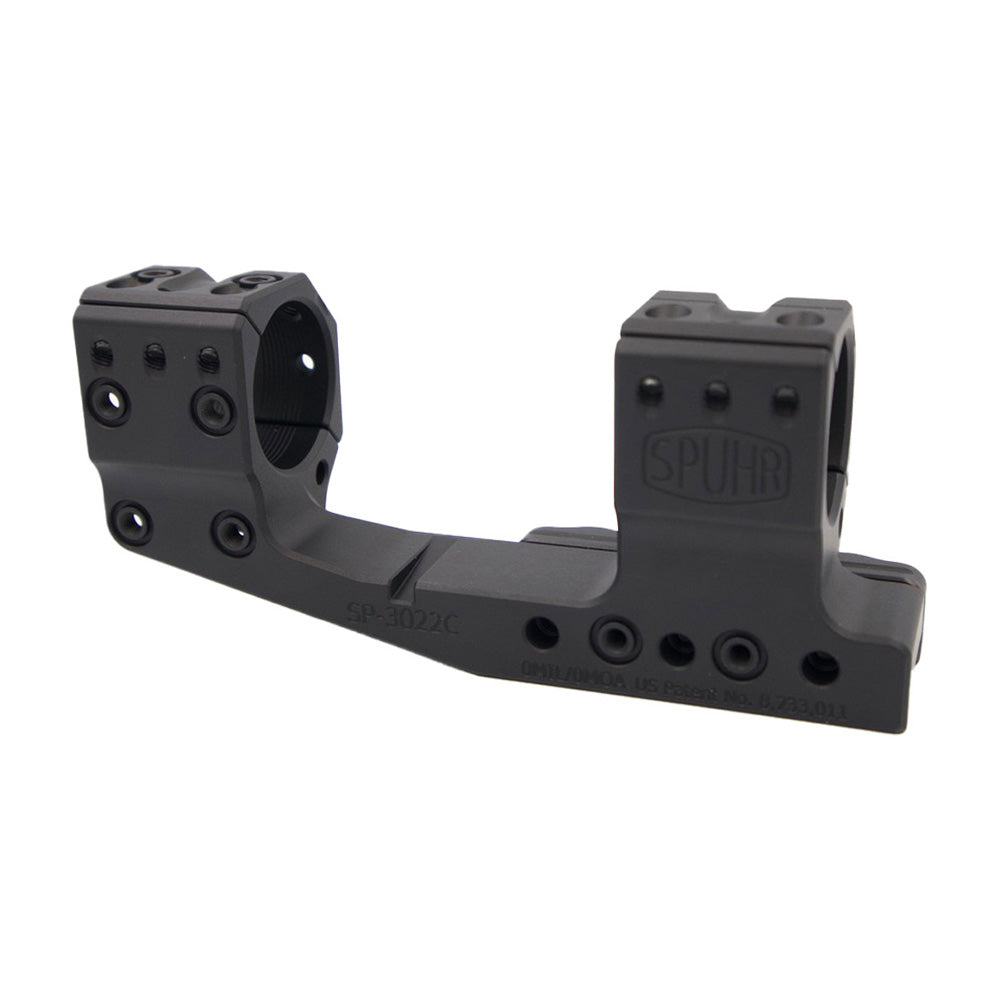

• H38/1.5" (SP-3022C, SP-4022C): 0 MIL/0 MOA, length 140 mm/5.51", 10-degree wedge included.

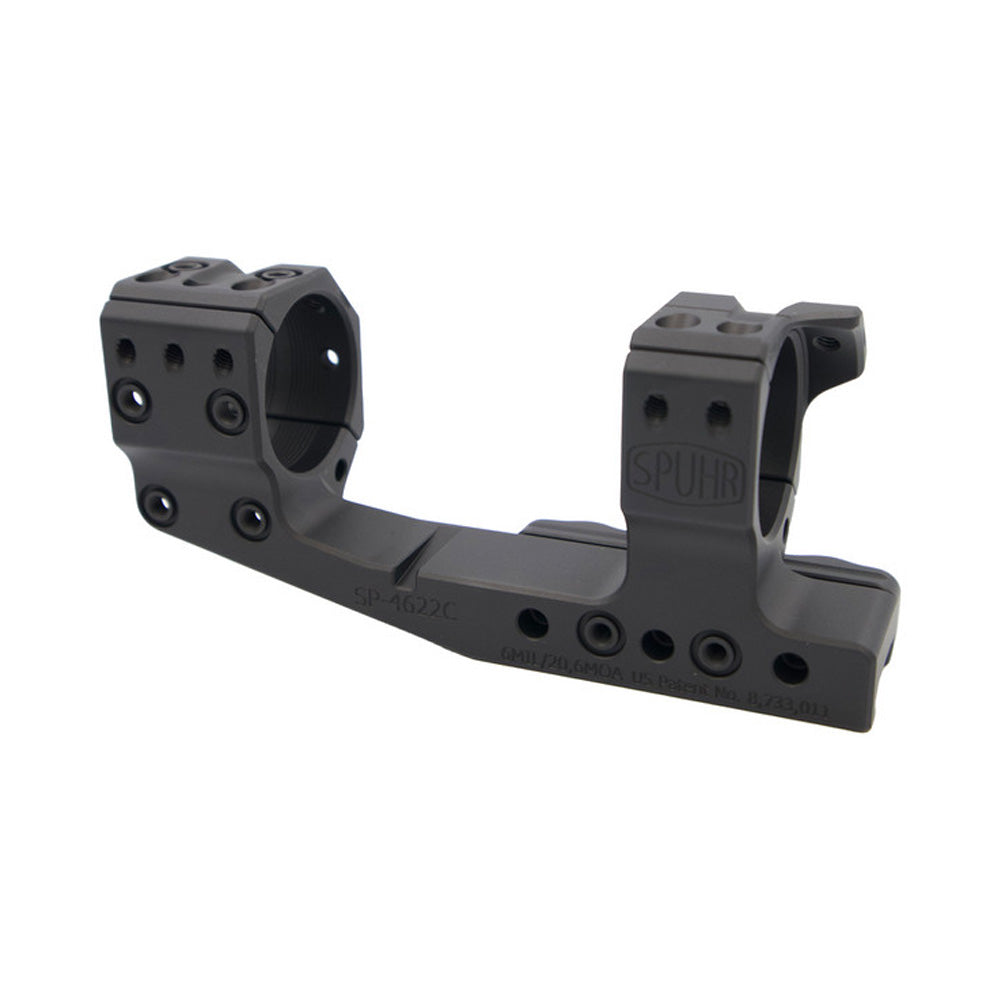

• H38/1.5" 6 MIL (SP-4622C): long-range tilt of 6 MIL/20.6 MOA, 34 mm, length 140 mm, weight 246 g/8.7 oz, 10-degree wedge included.

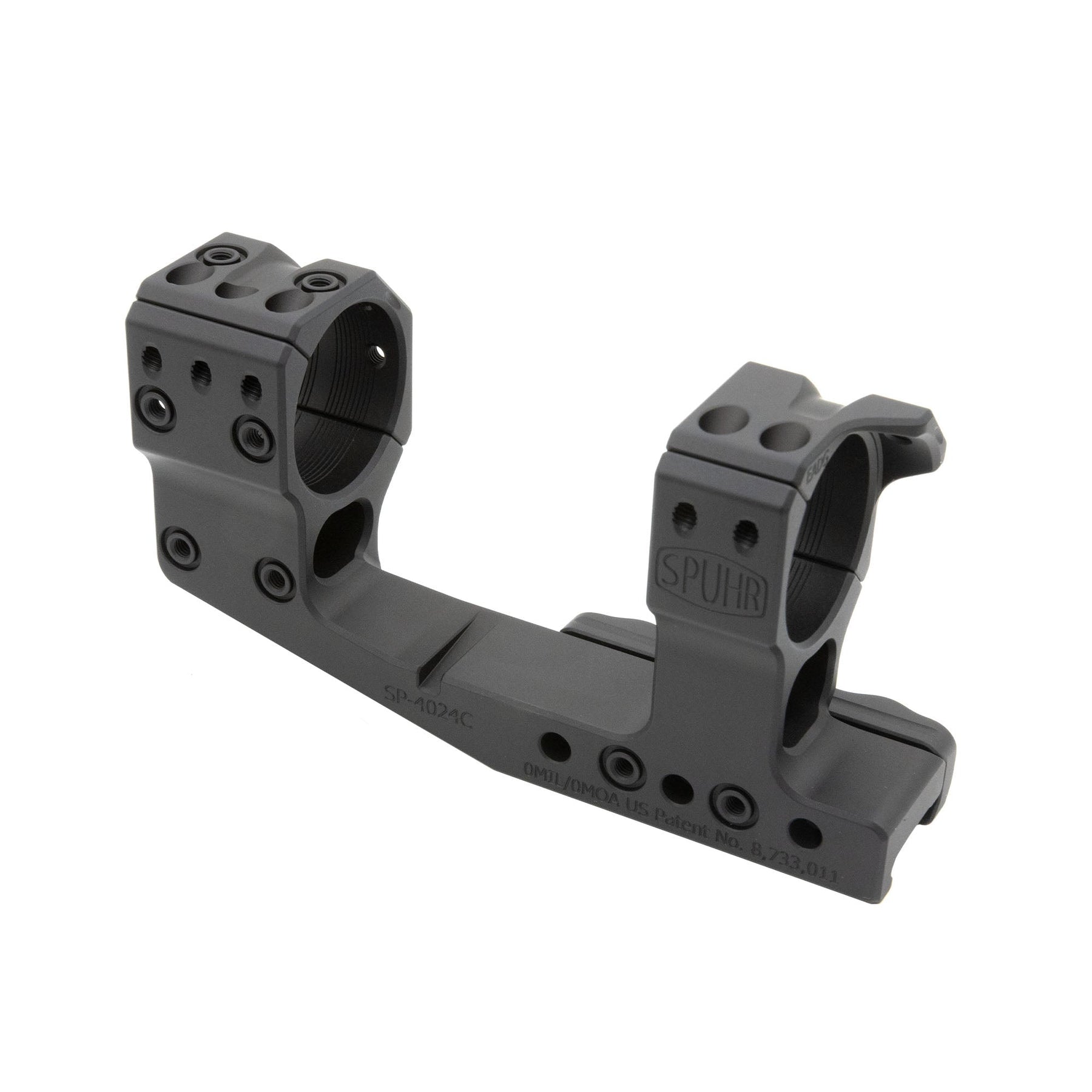

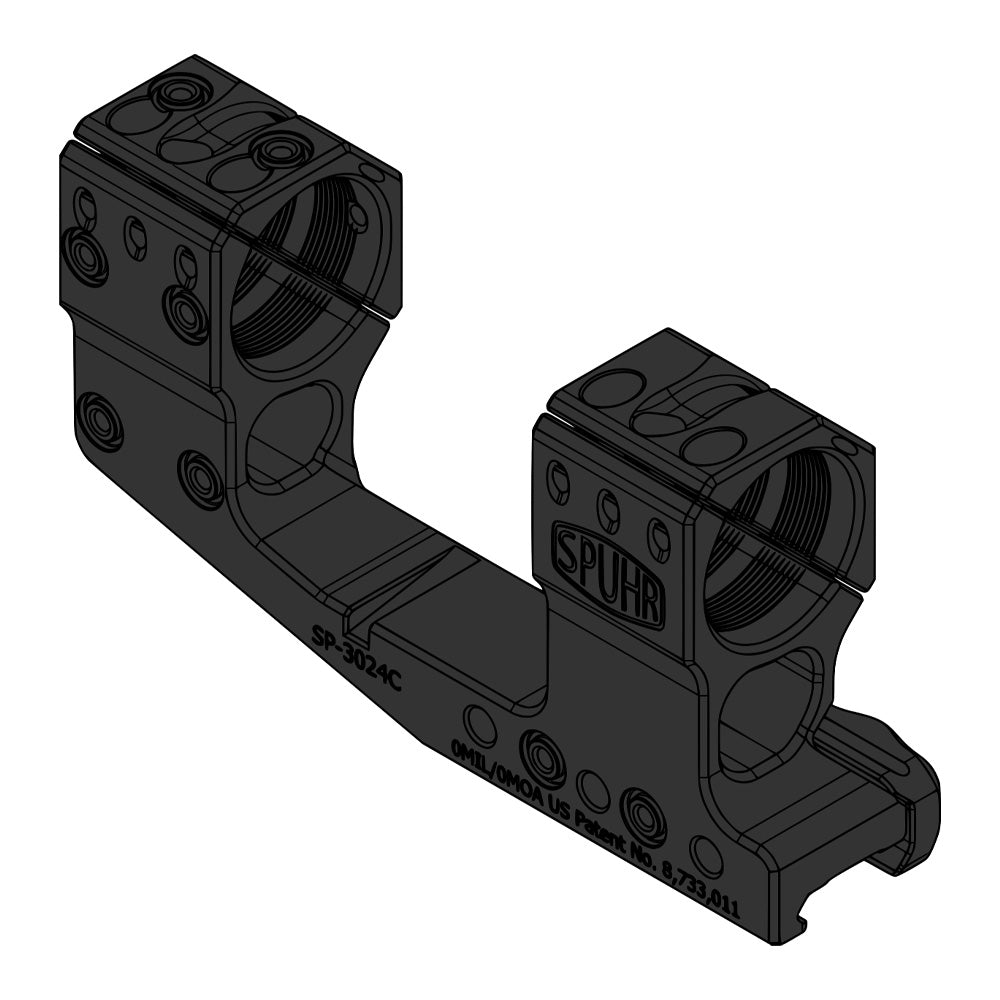

• H48/1.89" (SP-3024C, SP-4024C): high mount for AR platforms with an illuminator on top of the handguard. 0 MIL/0 MOA, length 140 mm, weight 260 g (30 mm) / 246 g (34 mm).

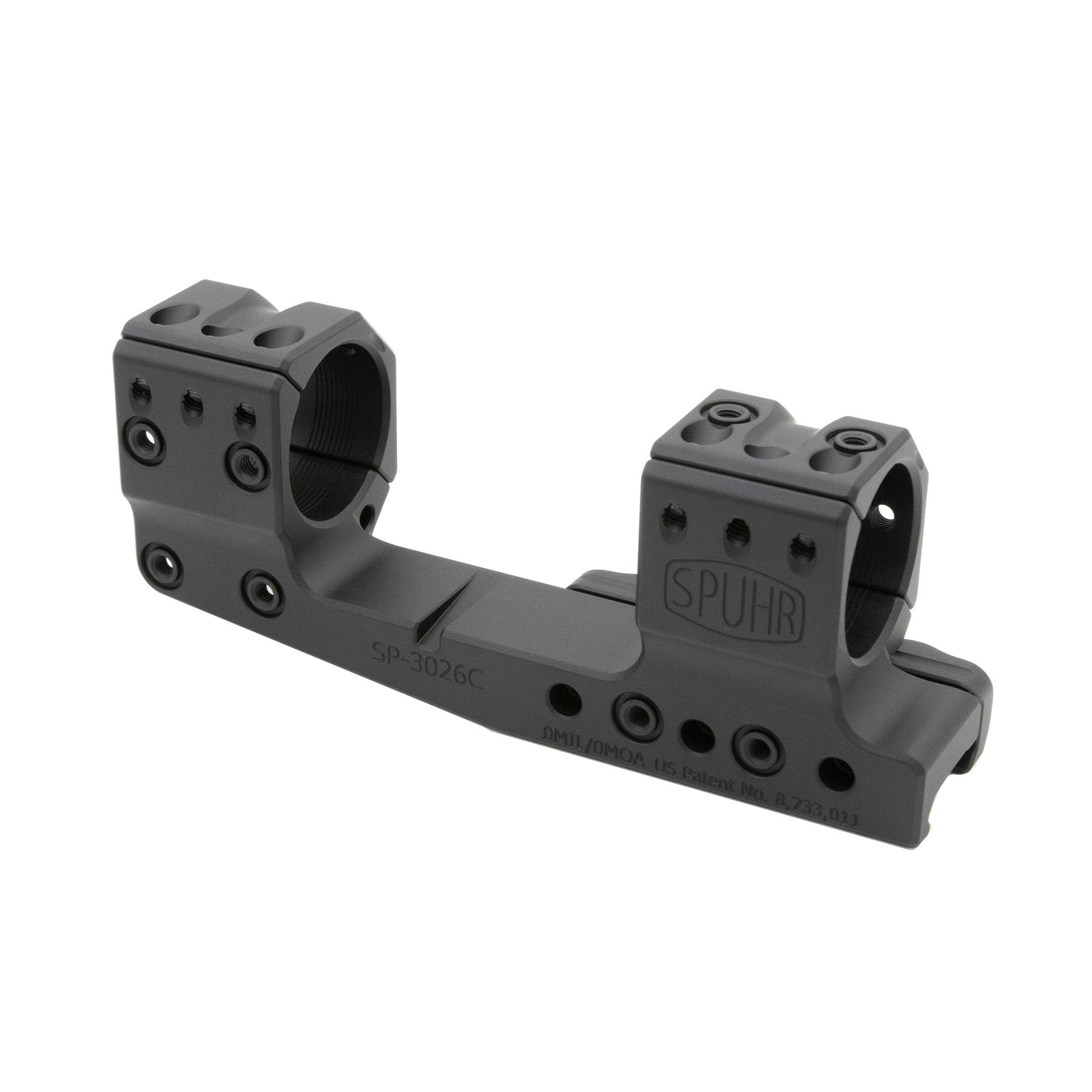

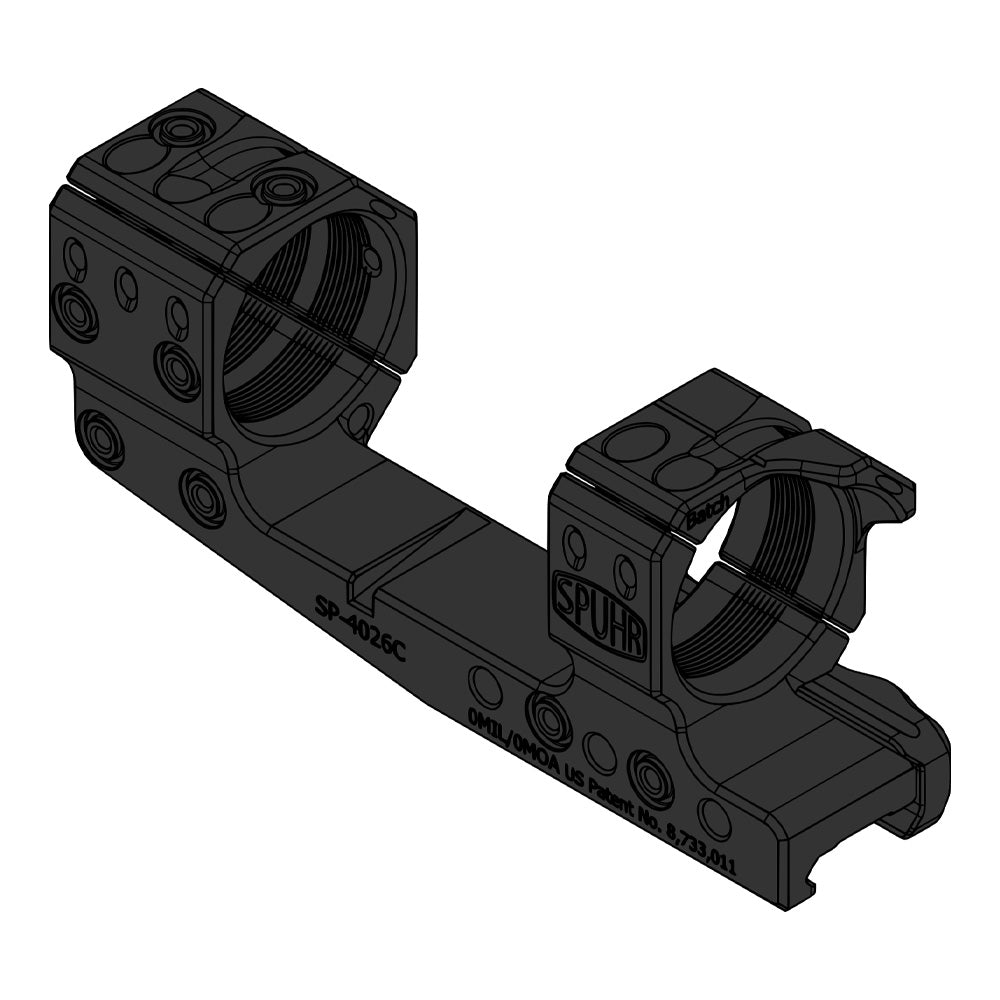

• H32/1.26" (SP-3026C, SP-4026C), "the Noveske Shooting Team mount": built for 3-Gun and IPSC-style rifle matches, it gives a tighter cheek weld than the usual 38 mm AR mount. No bubble level. 0 MIL/0 MOA, length 140 mm, weight 223 g (30 mm) / 217 g (34 mm), clearance 8 mm (30 mm) / 6 mm (34 mm). 10-degree wedge included.

Note: will not fit the SAKO S20 or rifles with 2-piece rails. From late 2023, rear top covers no longer have alignment grooves.
