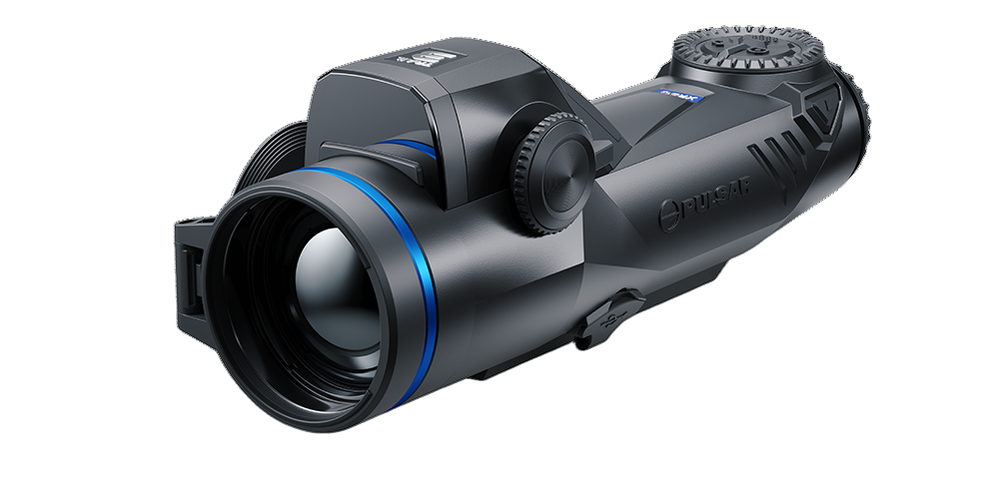

The Pulsar Trail 3 LRF is a thermal riflescope with a built-in laser rangefinder in a compact, Weaver-mounted body.
The Trail 3 LRF XR50 pairs a 640×480 thermal sensor with a 50 mm, F1.0 lens, rated to detect a deer-sized animal at up to 2300 m and range targets out to 1200 m. Expect around 11 h of operation and IP67 weather sealing.
At a Glance
| 640×480 @ 12 µmThermal sensor | <30 mKSensitivity (NETD) | 50 mm, F1.0Objective lens |
| 2300 mDetection range | 1200 mLaser rangefinder | 870 gWeight |
Key Features
- Monoblock housing – a rigid one-piece body holds zero under recoil and rough handling.
- Ergonomic controls – buttons close to hand, two custom shortcuts and a circular encoder.
- Two-sided focus – focus wheels with grip levers on both sides.
- Integrated ballistic calculator – shows on-screen corrections at the measured range from a personal profile.
- Heavy recoil rating – rated to .375 H&H and also suits smoothbore and air rifles.
- Recoil-activated recording – saves video of each shot automatically, with three sensitivity settings to suit the calibre.
- Full HD 1920x1080 AMOLED – a sharp, bright microdisplay.
- 1200 m laser rangefinder – scan or single-shot ranging.
Best For
- Pest and pig control with built-in ranging
- Fox shooting across open paddocks
- Shooters who prefer Weaver/Picatinny mounting
Specifications
| Detector | |
|---|---|
| Type | uncooled |
| Resolution | 640×480 |
| Pixel Pitch | 12 µm |
| Sensor NETD | <30 mK |
| System NETD | <18 mK |
| Frame refresh rate | 50 Hz |
| Optics | |
| Lens | 50 mm, F1.0 |
| Magnification | 3-24× |
| Eye relief | 50 mm |
| Field of view (H) | 8.8° (15.4 m @ 100 m) |
| Diopter adjustment | -5/+5 |
| Display | |
| Type | AMOLED |
| Resolution | 1920×1080 |
| Range Performance | |
| Detection distance (Object of “deer” type) | 2300 m |
| Laser Rangefinder | |
| Wavelength | 905 nm |
| Max. Measurement Range | 1200 m |
| Measurement Accuracy | 1 m |
| Laser class (IEC 60825-1) | 1 |
| Reticle & Zeroing | |
| Click value, mm@100 m – when magnifying | 10.7 – 3x 5.3 – 6x 2.7 – 12x 1.3 – 24x |
| Click range, mm@100 m (H/V) | 2200/2200 |
| Recording & Connectivity | |
| Photo / video resolution | 1440×1080 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | 64 GB |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Wireless Protocol | BLE 4.2 |
| App | Stream Vision 2, Stream Vision Ballistics |
| Power | |
| Power Supply | 3–4.2 V |
| Battery type / Capacity / Rated Output Voltage | LPS7i Li-ion Battery Pack / 6400 mAh DC 3.7 V (removable) |
| External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) |
| Battery Pack operating time at temp. = 22 °C | 11 h |
| Mounting & Recoil | |
| Max. recoil power on rifled weapon | 6000 Joules |
| Max. recoil power on smoothbore weapon | 12 caliber |
| Compatible Pulsar mounts | Weaver N Mount Weaver SQD Mount Weaver LQD Mount |
| Physical & Environmental | |
| Degree of protection IP code (IEC60529) | IP67 |
| Operating temperature | -25 – +50 °C |
| Dimensions with an eyecup | 271x86x71 mm |
| Weight (with battery, without mount) | 870 g |
In the Box
- Thermal imaging riflescope with removable eyecup
- Mount (sold separately)
- Screws and Allen wrench (sold separately)
- LPS7i rechargeable battery pack
- Power adapter
- USB Type-C cable with Type-A adapter
- Carrying case
- Lens cleaning cloth
- Quick Start Guide
- SV Ballistics Quick Start Guide
- Warranty card
Frequently Asked Questions
How does the Pulsar Trail 3 LRF XR50 compare with the rest of the Trail 3 LRF range?
The Trail 3 LRF line-up: Trail 3 LRF XR50 (640×480, 50 mm, F1.0, 2300 m detection, 1200 m rangefinder); Trail 3 LRF XQ50 (384×288, 50 mm, F1.0, 1800 m detection, 1200 m rangefinder). Larger lenses see further but give a narrower field of view; 640×480 and 1024×768 sensors show more detail than 384×288 at the same distance.
How far can the Trail 3 LRF XR50 see?
Pulsar rates it at 2300 m detection for a deer-sized animal — the distance at which the heat source shows on screen. Recognising what the animal is happens closer than that, and rain, fog and high humidity all shorten thermal range.
How does it mount, and what recoil can it take?
It takes Pulsar's Weaver-type mounts (Weaver N Mount Weaver SQD Mount Weaver LQD Mount), and is rated for recoil up to 6000 Joules on rifled firearms.
How long does the battery last?
Pulsar quotes around 11 h at 22 °C. Battery: LPS7i Li-ion Battery Pack / 6400 mAh DC 3.7 V (removable).
Does it connect to a phone?
Yes. It connects over Wi-Fi to Pulsar's Stream Vision 2; Stream Vision Ballistics app to stream live view, download photos and video, and update firmware.
Can I use a thermal device for hunting in Australia?
Rules on thermal and night-vision equipment differ between states and between public and private land. Check your state's hunting and firearms regulations, and the conditions of any permit or property access, before using it in the field.
Australian stock, supported locally through Pulsar's Australian distributor for warranty and service. Not sure which model suits your country or budget? Get in touch and we'll help you choose.
