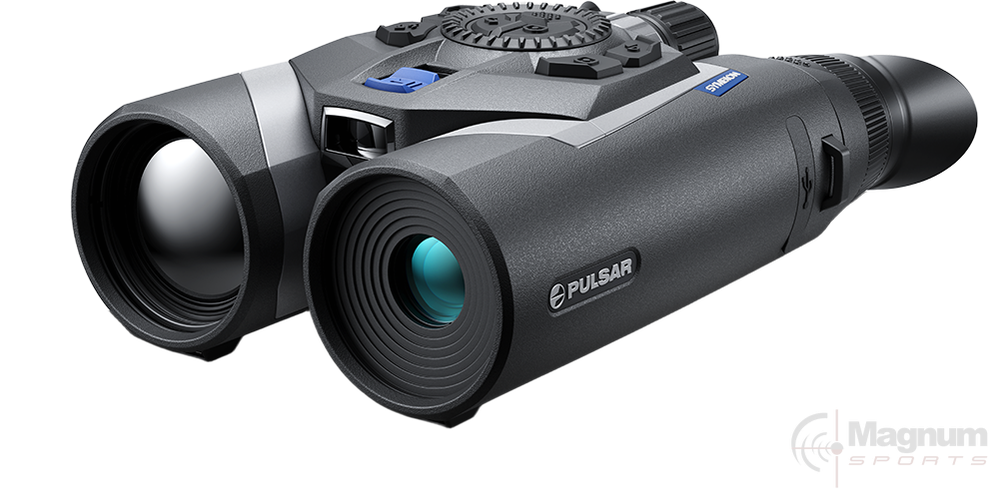

The Pulsar Symbion LRF is a multispectral binocular with thermal and digital channels plus a laser rangefinder, for detection, identification and ranging in one device.
The Symbion LRF DXR50 pairs a 640×480 thermal sensor with a 50 mm, F1.0 lens, rated to detect a deer-sized animal at up to 2300 m and range targets out to 1500 m. Expect around 10 h of operation and IP67 weather sealing.
At a Glance
| 640×480 @ 12 µmThermal sensor | <35 mKSensitivity (NETD) | 50 mm, F1.0Objective lens |
| 2300 mDetection range | 1500 mLaser rangefinder | 1000 gWeight |
Key Features
- Multispectral imaging – switch between full-colour day, twilight and thermal views.
- 4K digital colour sensor – rich colour by day and usable twilight views, helped by the built-in IR.
- Choice of thermal sensor – hD 1280x1024 (DXT50) or high-sensitivity 640x480 (DXR50).
- Image stabilisation – electronic stabilisation keeps high-magnification views steady.
- One-hand operation – dual focus wheels and a layout that suits either hand.
- 1500 m laser rangefinder – scan or single-shot ranging.
- Multispectral PiP – shows digital and thermal channels at once to detect and confirm targets.
- Focusable 850 nm IR – three power levels for total darkness.
Best For
- Day and night glassing with one binocular
- Identifying and ranging game before the shot
- Professional pest control and wildlife management
Specifications
| Detector | |
|---|---|
| Type | uncooled |
| Resolution | 640×480 |
| Pixel Pitch | 12 µm |
| Sensor NETD | <35 mK |
| System NETD | <18 mK |
| Frame rate | 50 Hz |
| Digital Channel | |
| Type | CMOS |
| Resolution | 3840×2160 |
| Focal length | 50 mm |
| Magnification | 6.5 – 26× |
| Digital zoom | x1, x2, x4 |
| Field of view angle (horizontal) | 5.8° (10.2 m @ 100 m) |
| Minimum Focus Distance | 3 m |
| Eye relief | 13 mm |
| Exit pupil diameter | 5 mm |
| Diopter adjustment | -5/+5 |
| Interpupillary distance adjustment | 62.5 – 74 mm |
| Optics | |
| Thermal – Lens | 50 mm, F1.0 |
| Thermal – Magnification | 4 – 32× |
| Thermal – Field of view angle (horizontal) | 8.8° (15.4 m @ 100 m) |
| Display | |
| Type | AMOLED |
| Resolution | 1920×1080 |
| IR Illuminator | |
| Type | LED |
| Wavelength | 850 nm |
| Range Performance | |
| Thermal – Detection distance (deer-type object) | 2300 m |
| Laser Rangefinder | |
| Wavelength | 905 nm |
| Max. measuring range | 1500 m |
| Laser class (IEC 60825-1) | 1 |
| Recording & Connectivity | |
| Video / photo resolution | 1440×1080 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | 64 GB |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Wireless Protocol | BLE 4.2 |
| App | Steam Vision 2, Steam Vision Ballistics |
| Power | |
| Power supply | 3.7 V |
| Battery type / Capacity / Output voltage | Li-Ion Battery Pack APS 5 / 4900 mAh |
| External power supply | 5 V, 9 V (USB Type-C Power Delivery) |
| Operating time from 2 APS 5 battery packs at t=22 °C | 10 h |
| Physical & Environmental | |
| Degree of protection, IP code (IEC60529) | IP67 |
| Operating temperature range | -25 … +40 °C |
| Dimensions | 207x132x72.5 mm |
| Weight (with battery) | 1000 g |
In the Box
- Symbion LRF multispectral binoculars
- APS 5 rechargeable battery (2 pcs.)
- APS 5 battery caps (2 pcs.)
- APS 5 charger
- Power adapter
- USB Type-C cable with Type-A adapter
- Carrying case for binoculars
- Binoculars harness
- Neck strap
- Optics cleaning cloth
- Quick start guide
- Tripod adapter
- Warranty card
Watch It in Action
Frequently Asked Questions
How does the Pulsar Symbion LRF DXR50 compare with the rest of the Symbion LRF range?
The Symbion LRF line-up: Symbion LRF DXT50 (1280×1024, 50 mm, F1.0, 2300 m detection, 1500 m rangefinder); Symbion LRF DXR50 (640×480, 50 mm, F1.0, 2300 m detection, 1500 m rangefinder). Larger lenses see further but give a narrower field of view; 640×480 and 1024×768 sensors show more detail than 384×288 at the same distance.
How far can the Symbion LRF DXR50 see?
Pulsar rates it at 2300 m detection for a deer-sized animal — the distance at which the heat source shows on screen. Recognising what the animal is happens closer than that, and rain, fog and high humidity all shorten thermal range.
How long does the battery last?
Pulsar quotes around 10 h at 22 °C. Battery: Li-Ion Battery Pack APS 5 / 4900 mAh.
Does it connect to a phone?
Yes. It connects over Wi-Fi to Pulsar's Stream Vision 2; Stream Vision Ballistics app to stream live view, download photos and video, and update firmware.
Australian stock, supported locally through Pulsar's Australian distributor for warranty and service. Not sure which model suits your country or budget? Get in touch and we'll help you choose.
