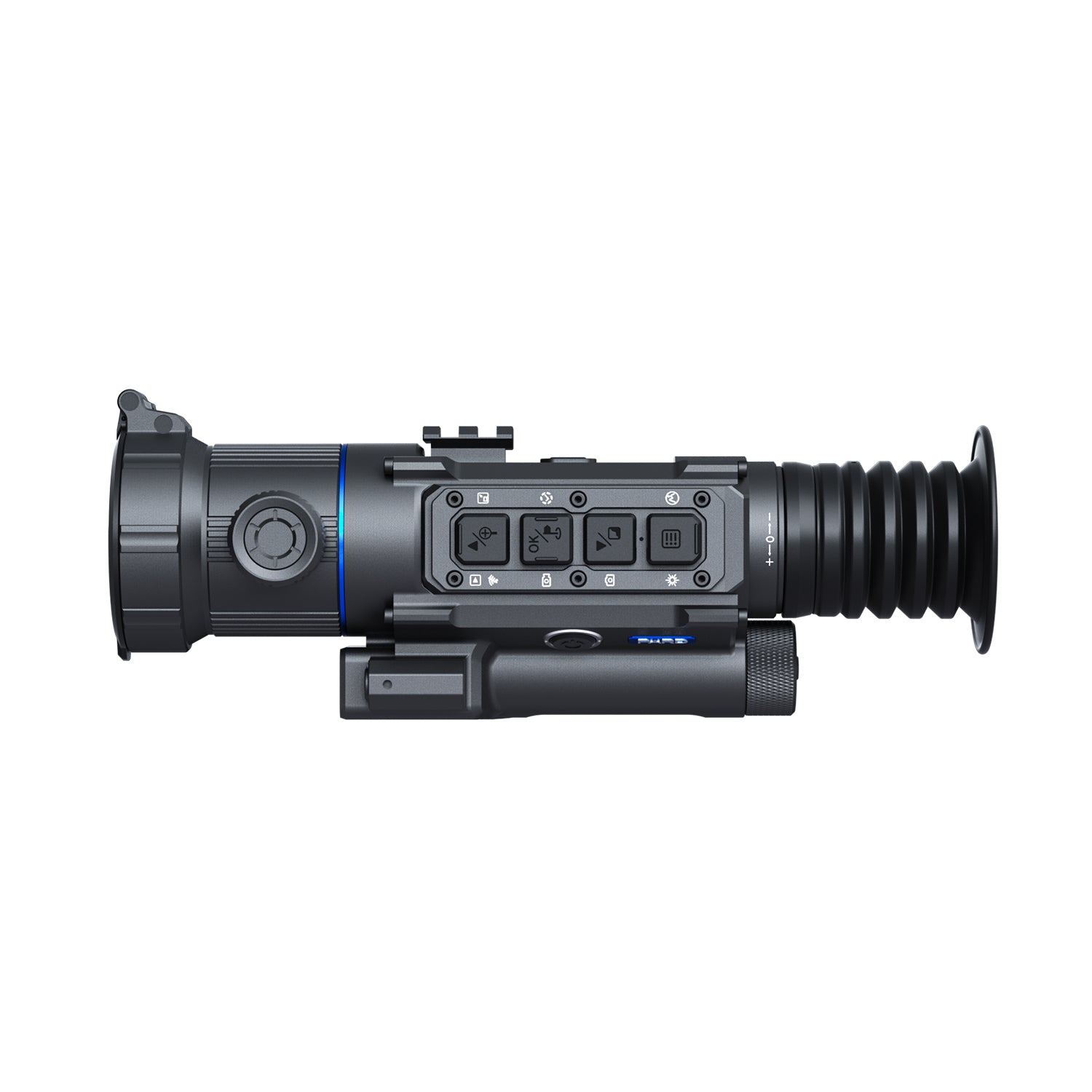

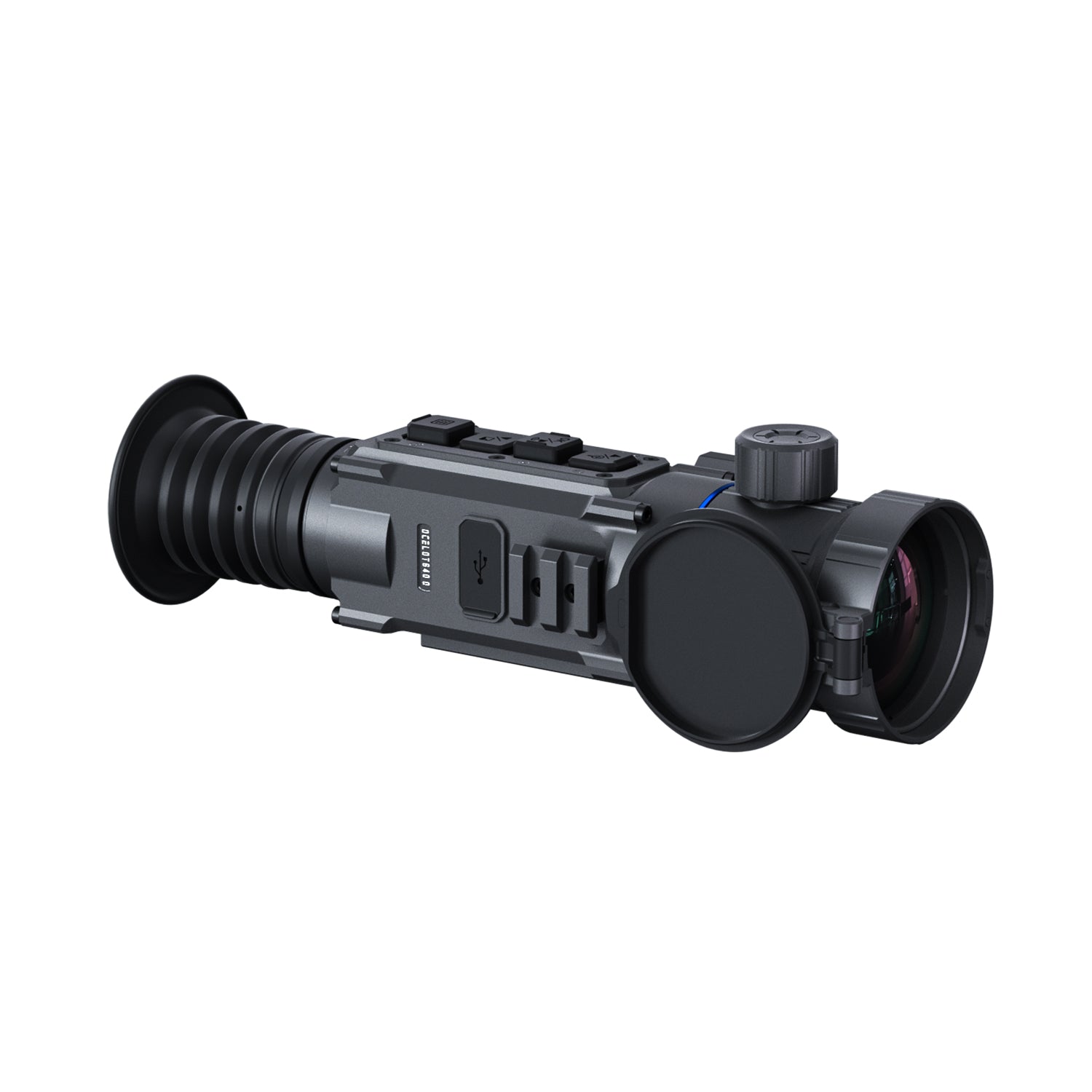

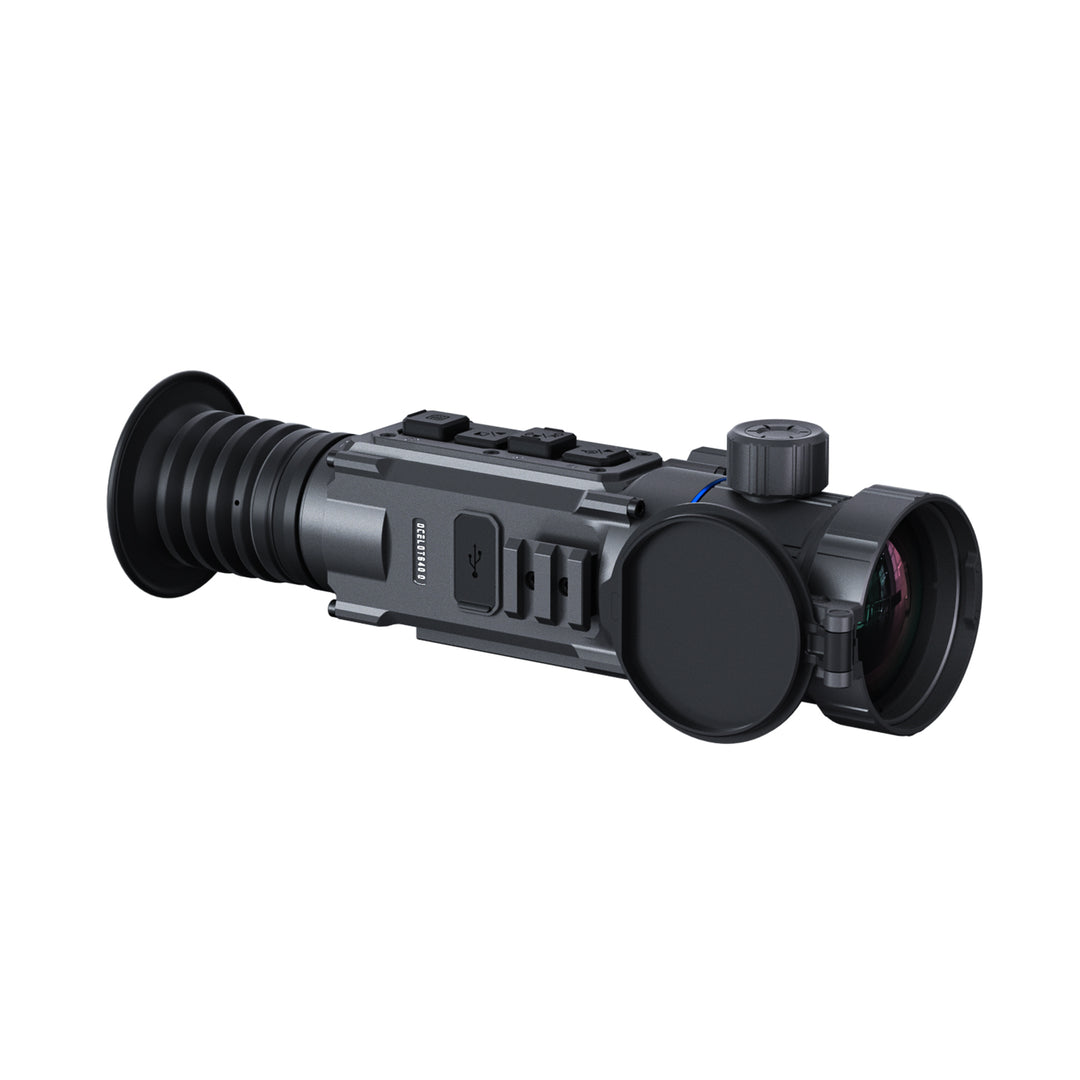

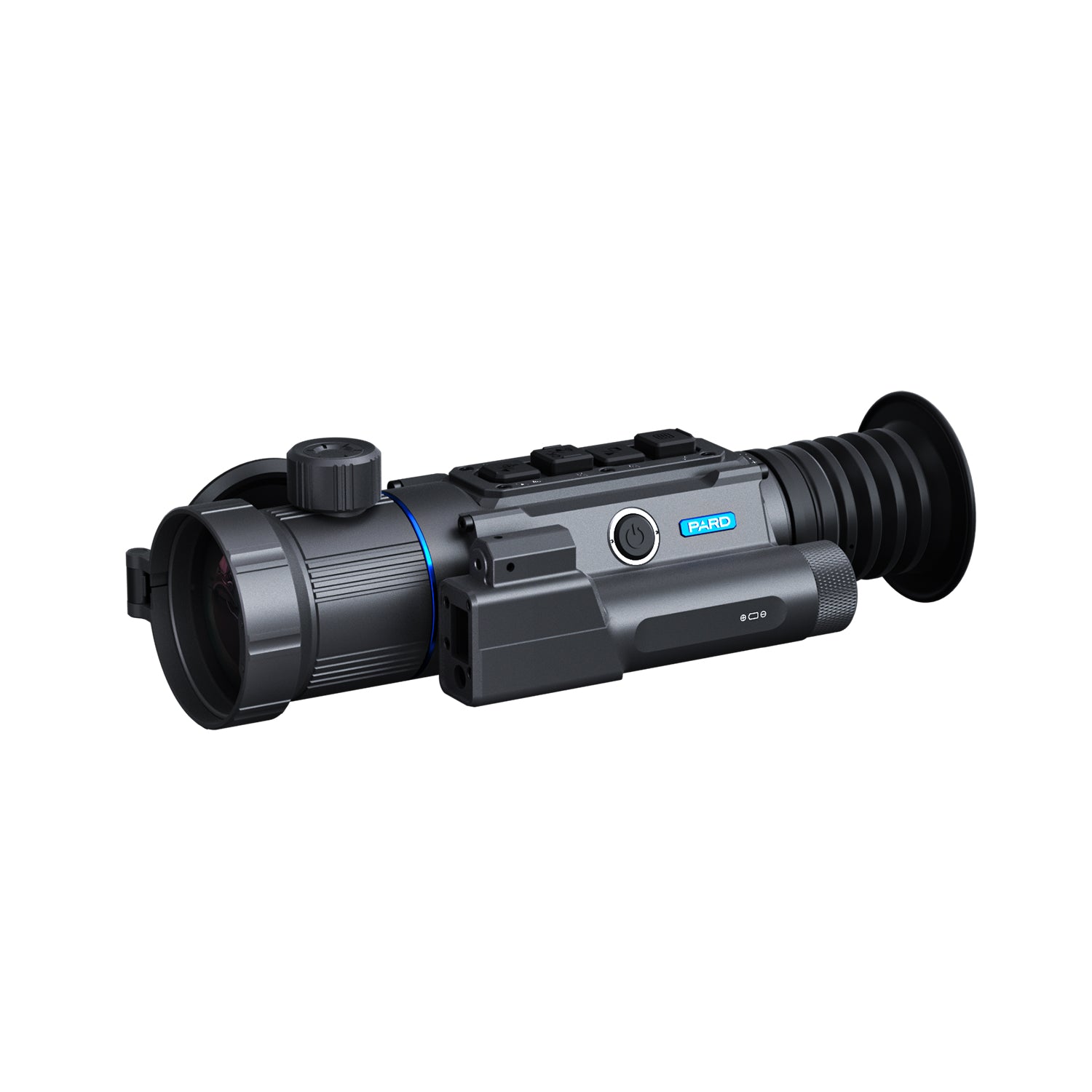

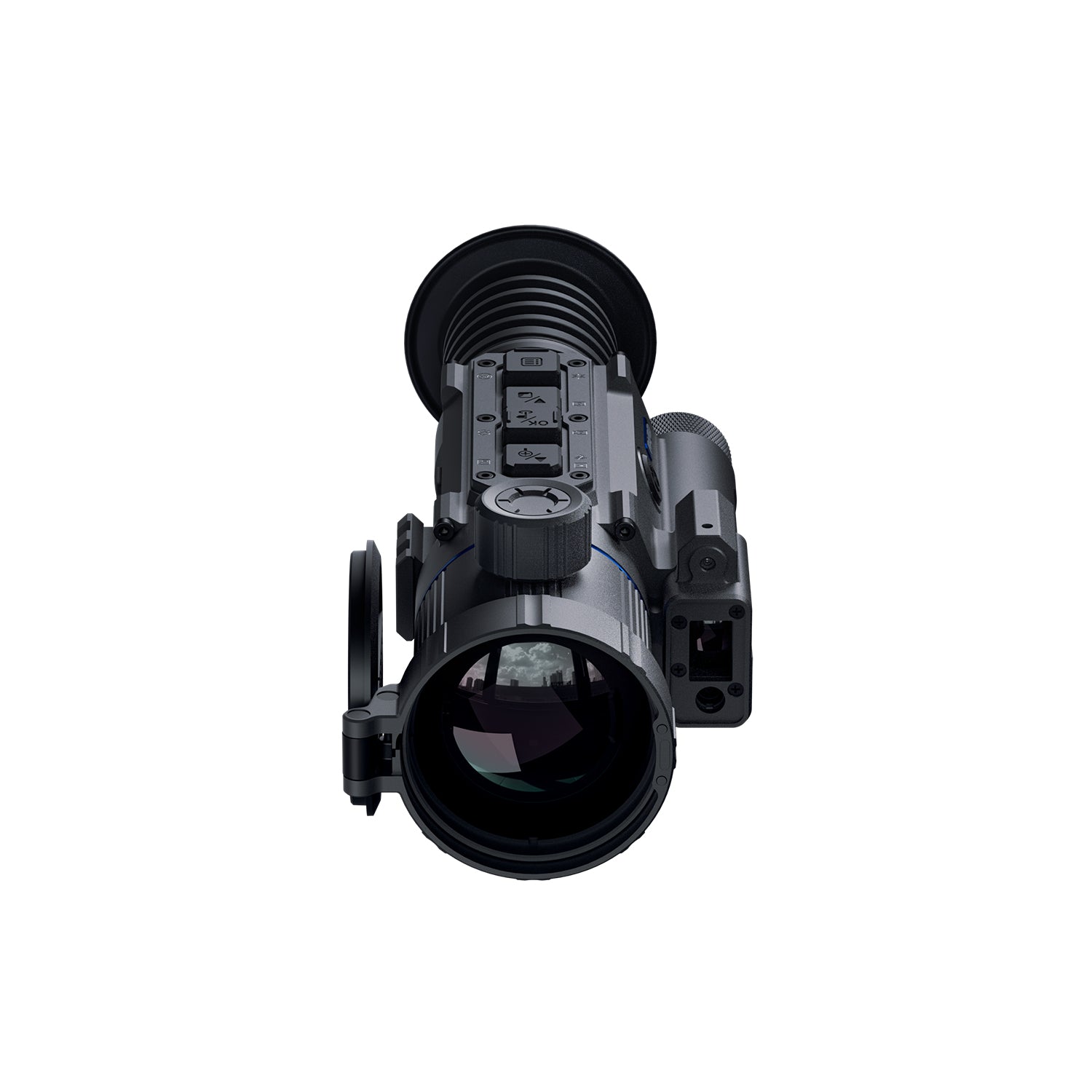

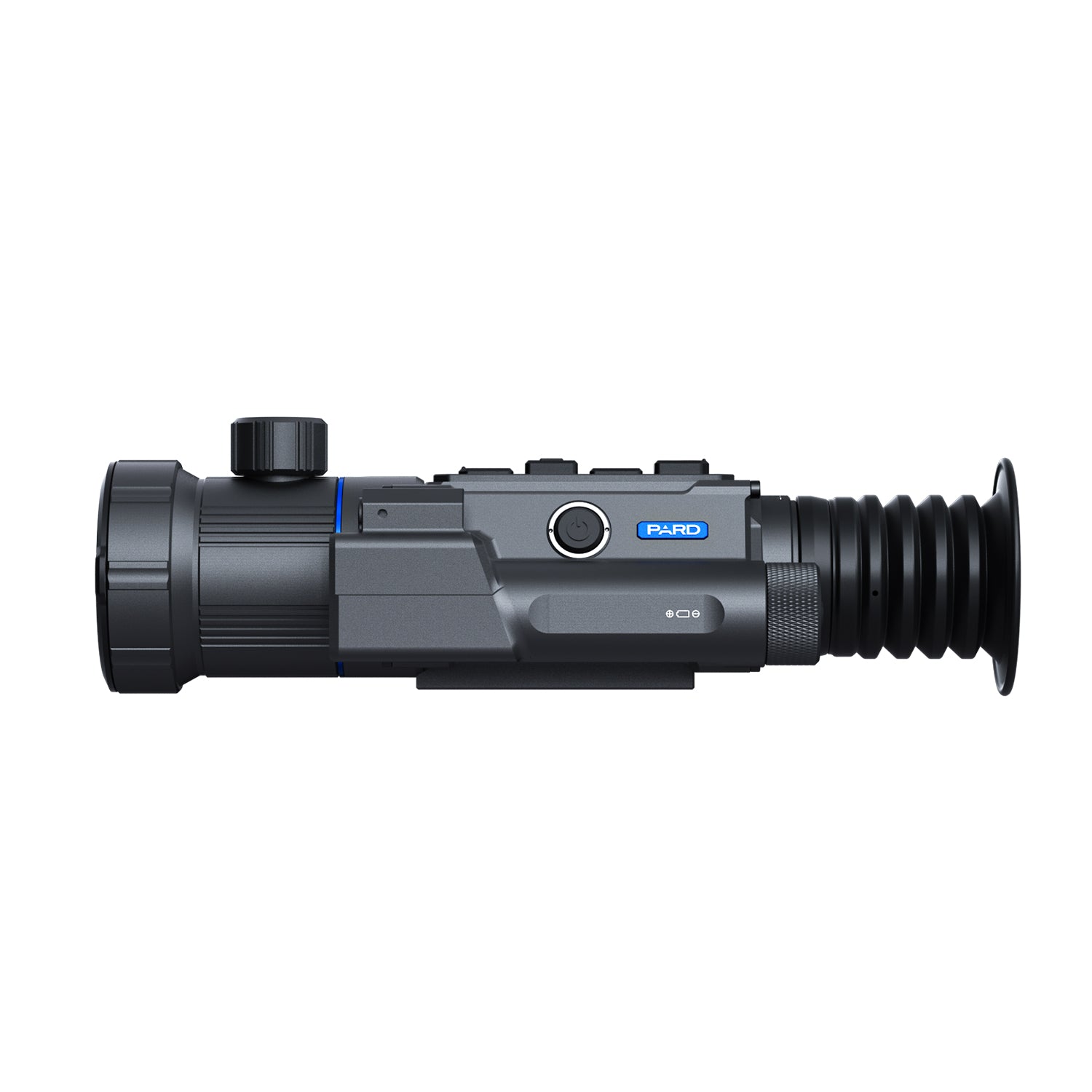

The Pard Ocelot Q is a compact thermal riflescope only 225 mm long, built around an uncooled VOx sensor with ≤18 mK sensitivity, a 1920×1080 OLED display and an integrated 1000 m laser rangefinder with ballistic calculator.
The Ocelot 640 Q pairs the 640×512 sensor with a 50 mm lens (2.9× base magnification) for a human-target detection distance of 2600 m, and runs up to 8 hours on a removable 21700 battery.
At a Glance
| 640×512, 12 µm, ≤18 mKSensor | 50 mmLens | 2.9× optical, 2/4/6/8× digitalMagnification |
| 1920×1080 OLEDDisplay | 2600 m (human)Detection | 1000 mLRF |
Key Features
- High-sensitivity sensor – NETD ≤18 mK picks out small temperature differences for more detailed images in poor weather.
- 640×512 resolution – More pixels show more target detail at distance.
- 1920×1080 OLED display – Sharp, vivid image with OLED efficiency for longer runtime.
- 1000 m LRF and ballistic calculator – One press ranges the target; a second shows the estimated point of impact.
- Compact body – At 225 mm and 678 g it keeps rifles short and well balanced.
- Six image modes – White-hot, black-hot, H-light, red-hot, iron-hot and sky modes suit different conditions.
- Removable 21700 battery – Higher-capacity cell for up to 8 hours, swappable in the field.
- IP67, 6000 J – Weatherproof and recoil-rated.
Best For
- Fox control across open paddocks
- Pig shooting along creek lines
- Deer in timber at first and last light
Specifications
| DETECTOR | |
|---|---|
| Type | Uncooled VOx |
| Resolution | 640×512 |
| Pixel pitch | 12 µm |
| NETD | ≤18 mK |
| Frame rate | 50 Hz |
| OPTICS | |
| Objective lens | 50 mm |
| Optical magnification | 2.9× |
| Digital zoom | 2/4/6/8× |
| Field of view | 8.8° × 7° (11.2° diagonal) |
| Field of view at 100 m | 15.4 × 12.3 m |
| Eye relief | 50 mm |
| Dioptre adjustment | -5 to +5 |
| DISPLAY | |
| Type | OLED |
| Resolution | 1920×1080 |
| Image modes | WT-HOT / BK-HOT / H-light / RD-HOT / IN-HOT / SKY |
| Scene modes | City / Rain / Forest |
| RANGE PERFORMANCE | |
| Human detection distance | 2600 m |
| LASER RANGEFINDER | |
| Maximum range | 1000 m |
| Ballistic calculator | Yes |
| RETICLE & ZEROING | |
| Reticle styles | 7 |
| Reticle colours | Red / white / yellow / green |
| Picture-in-picture | Yes |
| Hot track | Yes |
| Gyroscope / e-compass | Yes |
| RECORDING & CONNECTIVITY | |
| Photo | 1440×1080 .JPG |
| Video | 1440×1080 .mp4 |
| Storage | Micro SD (max 128 GB) |
| Recoil-activated and loop recording | Yes |
| Wi-Fi | Yes |
| HDMI output | Yes |
| USB | Type-C |
| App | PardVision2 |
| POWER | |
| Battery | 1 × 21700 Li-ion, removable |
| Voltage | 3.7 V |
| Operating time | Up to 8 h |
| External power | USB Type-C |
| MOUNTING & RECOIL | |
| Recoil resistance | 6000 J |
| PHYSICAL & ENVIRONMENTAL | |
| Protection | IP67 |
| Operating temperature | -30 to 55 °C |
| Shutter | Mechanical |
| Housing | Aluminium alloy |
| Dimensions | 225 × 78 × 71 mm |
| Weight (with battery) | 678 g |
| Brand | Pard |
| Part number | OC6Q-50/LRF |
In the Box
Optional (sold separately): Spare 21700 battery, Scope rings or mount to suit your rifle
Frequently Asked Questions
How does it compare with other Pard thermal scopes?
Pard's current thermal riflescopes (official specifications): Pantera 256 Mini – 256×192 sensor, 25 mm lens, 1920×1080 OLED, 1200 m detection, LRF optional. Pantera Q – 480×360 (35/50 mm, 1800/2600 m) or 640×512 (50 mm, 2600 m), 1600×1200 OLED, 1000 m LRF optional. Pantera eX 640 – 640×512, NETD ≤14 mK, 35 or 50 mm lens, 2560×2560 OLED round display, 2600 m detection (50 mm), 1000 m LRF optional. Pantera 640 2.0 – 640×512, 75 mm lens, 800×800 IPS round display, 2900 m detection, 1000 m LRF. Ocelot Q – 480×360 (35/50 mm) or 640×512 (50 mm), 1920×1080 OLED, compact 225 mm body, 1000 m LRF.
How far can I actually see an animal?
Pard quotes a maximum detection distance for a human-sized target. Detection only means a heat source shows up on screen; recognising what the animal is, and positively identifying it before a shot, happens at much shorter distances depending on the animal's size, the weather and the background.
How long does the battery last?
Up to 8 hours on one removable 21700 battery.
Does it connect to a phone?
Yes. Built-in Wi-Fi links to Pard's PardVision2 app, which lets a phone act as an external viewfinder for sharing or watching what the shooter sees.
What mount does it need?
Pard's specification sheet does not list the ring or rail size for this model, so confirm mount compatibility for your rifle before ordering.
Can I mount this on my rifle anywhere in Australia?
Rules for weapon-mounted night vision and thermal devices differ between states and territories, and some jurisdictions restrict or prohibit them. Check the current requirements with your state firearms registry before you buy or fit one to a rifle.
Australian stock, with local warranty and service support through the Australian distributor. Questions about this model? Get in touch and we'll help you choose.
