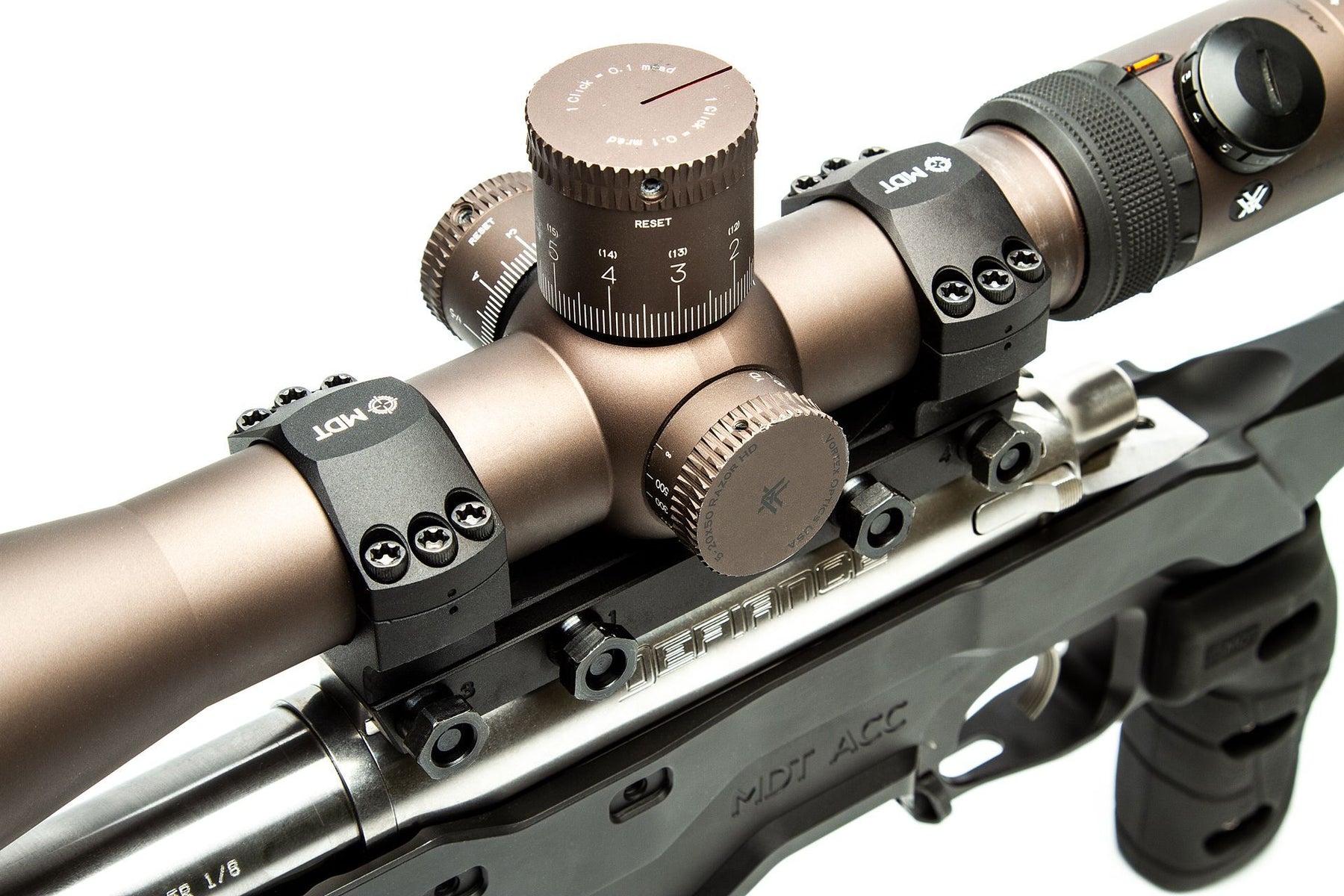

MDT Unimount One-Piece Scope Mount 35mm

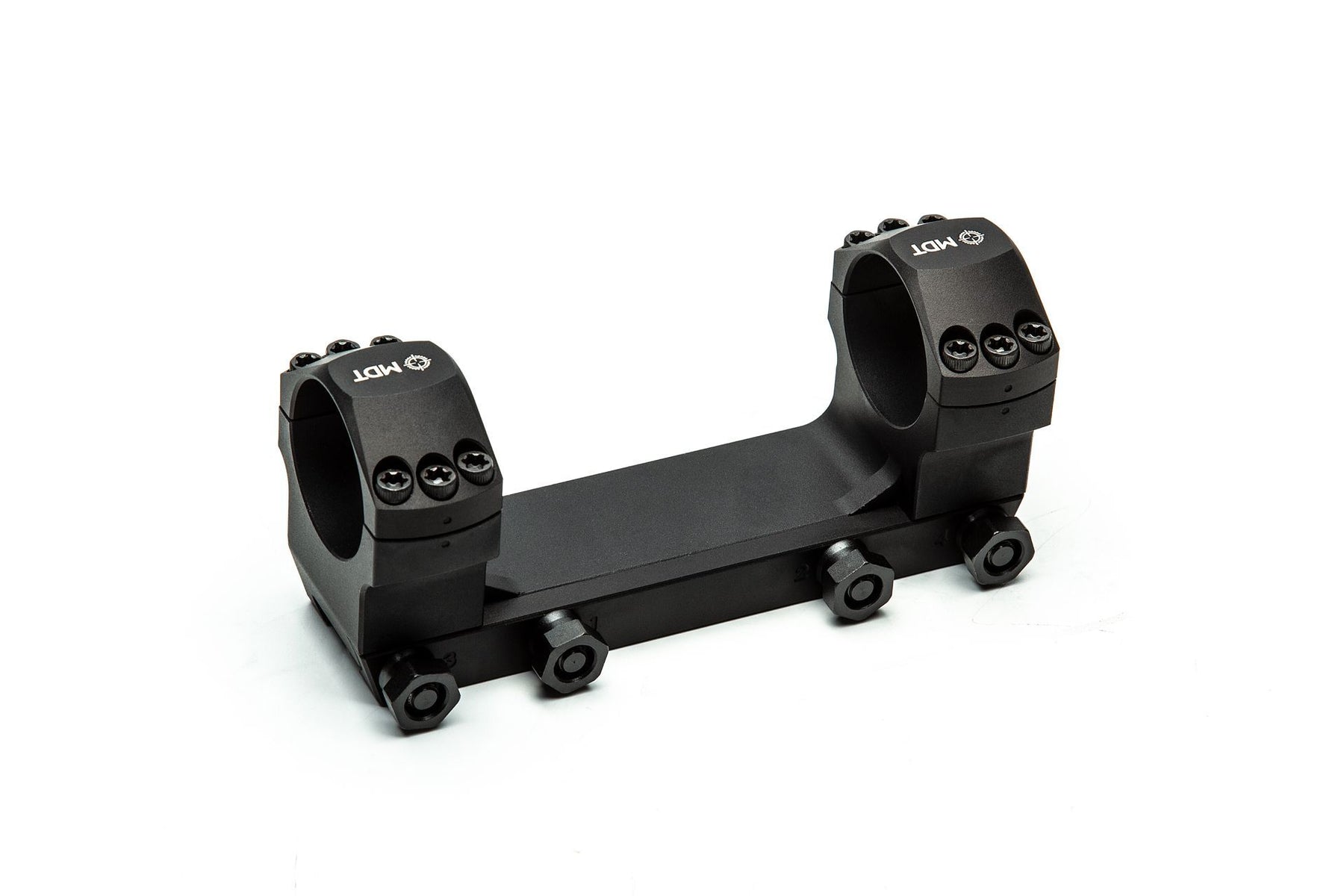

MDT Unimount One-Piece Scope Mount 35mm – view 2

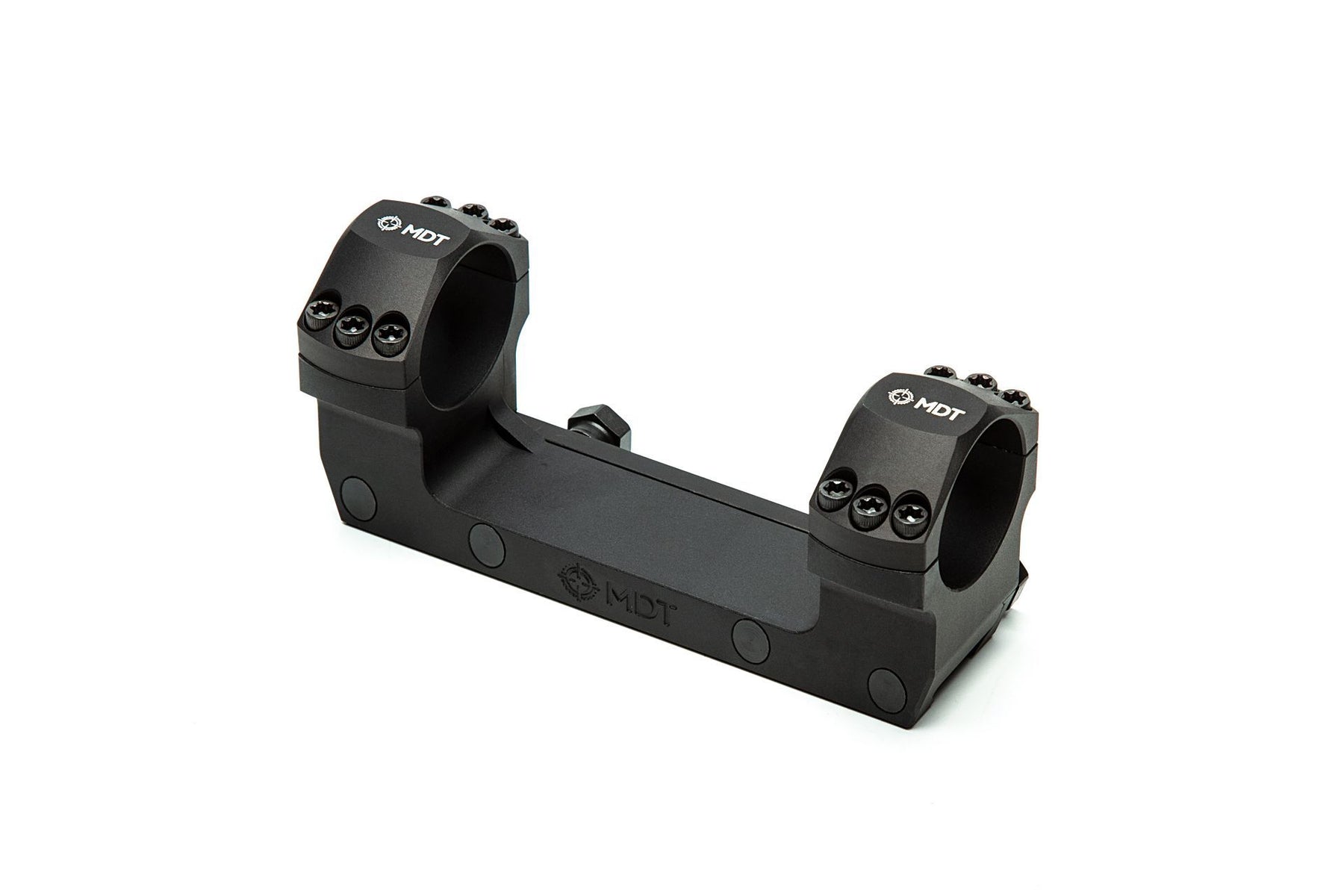

MDT Unimount One-Piece Scope Mount 35mm – view 3

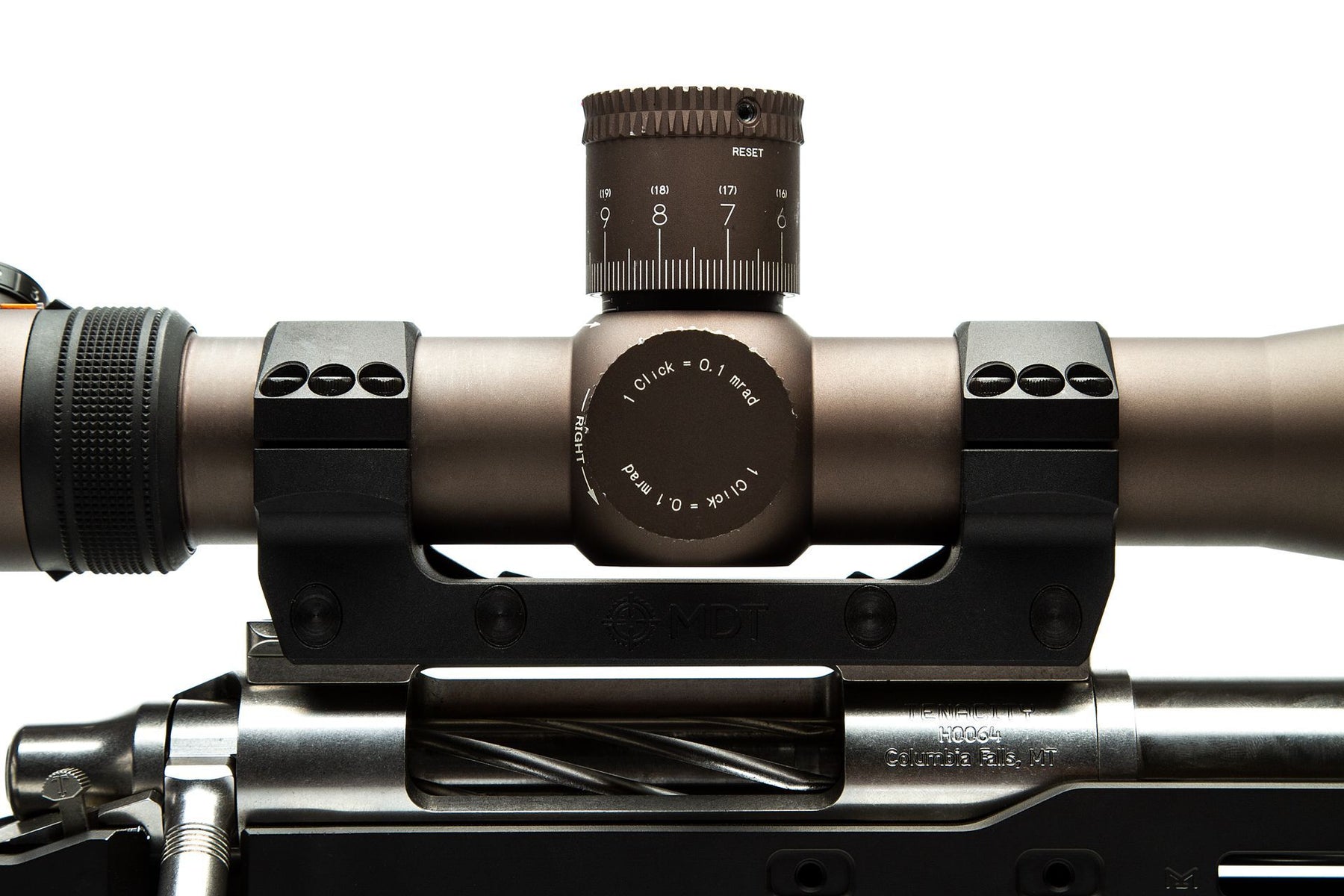

MDT Unimount One-Piece Scope Mount 35mm – view 4

MDT Unimount One-Piece Scope Mount 35mm

104551-BLK

Fitment
Regular price $589.00 Sale price$560.00 Save $29.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

The MDT Unimount is a one-piece Picatinny scope mount built for precision shooters who need a rigid, repeatable optic mount that holds zero. Its long, wide footprint gives far more contact with both the scope and the rail than conventional rings, and the matched bores are machined together for true alignment.

A stepped cap design lets you fully tighten one side first, then level and align the scope before torquing the other side, so setting up your optic is quick and precise.

Key Features

  • 50 mm (1.968") of contact with the scope tube and 134 mm (5.286") along the rail
  • Integral recoil lug for strength and repeatability under recoil
  • Four cross bolts with an engraved tightening sequence for repeatable remounting between rifles
  • Stepped base-to-cap interface simplifies levelling
  • Scope bores and rail interface machined in the same operation for square, parallel rings
  • Extra-thick single-piece clamp

Specifications

  • Tube diameter: 35 mm (three height options, measured from rail top to bore centre)
  • Material: Billet 6061-T6 aluminium, machined on a seven-axis CNC mill
  • Mounting: Picatinny rail
  • Recommended torque: 60–65 in-lb on the side nuts
  • Made in Canada
