Conotech's Aquila series are compact thermal monoculars built around genuine one-hand use, with finger-wheel focusing, a highly sensitive 12 µm sensor and a dual-battery system that runs for up to 10 hours and can be hot-swapped in the field.

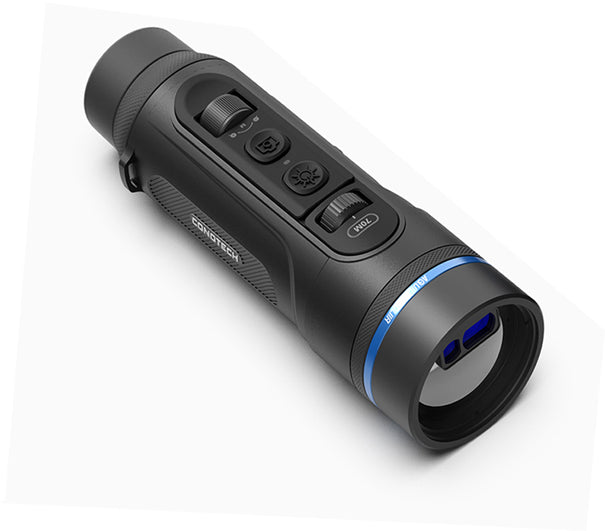

The Aquila 650LIIR is the flagship: a 640x512 sensor with a 50 mm lens and 2.7–14x zoom, plus Conotech's patented LIIR laser rangefinder built into the lens for 5–1200 m ranging. Conotech rates detection of a 1.7 m target at 3541 m.
At a Glance
| 640x512, 12 µm, <20 mKSensor | 50 mmLens | 2.7–14xMagnification |
| 3541 m (1.7 m target)Detection | 5–1200 m, ±1 mRangefinder | Up to 10 h, dual batteryBattery |
Key Features
- Highly sensitive sensor – A 12 µm uncooled VOx detector with NETD under 20 mK keeps detail clear in fog, rain, dust and low-contrast conditions.
- LIIR rangefinder in the lens – Conotech's patented LIIR design aligns the laser and infrared axes for precise 5–1200 m ranging, accurate to ±1 m.
- True one-hand operation – Finger-wheel focusing works equally well for left- and right-handed users.

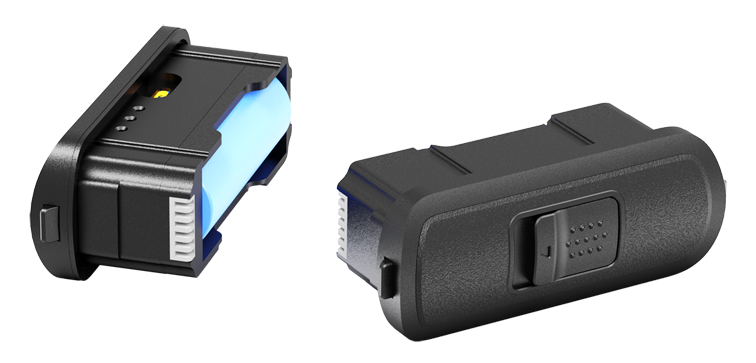

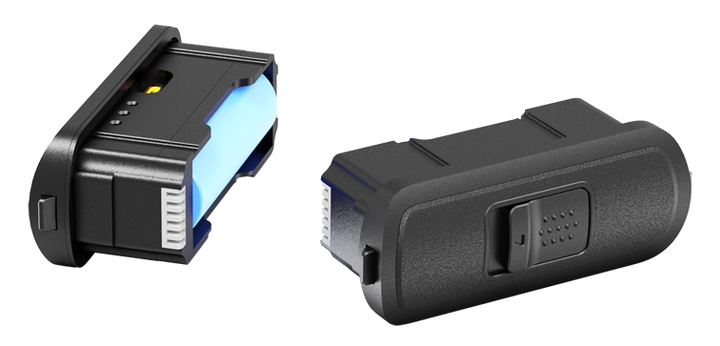

- Dual battery, 10 hours – A built-in battery plus a removable external battery give up to 10 hours of use.
- Non-stop power – Swap the external battery without switching the device off.
- Quick charge – Reaches 90% charge in about one hour; the battery compartment doubles as a stand-alone charger.
- Spectacle friendly – An eyepiece adjustment mechanism makes viewing easier for glasses wearers.
- Record and share – Photo, video and audio recording to 32 GB of built-in memory, with Wi-Fi video output.
- IP67 rated – Sealed against dust and water for hard field use.
Best For
- Long-range glassing of open country for deer and pigs
- Ranging foxes before a shot during night control
- Spotting and ranging for a shooting partner
Specifications
| DETECTOR | |
|---|---|
| Type | Uncooled VOx |
| Resolution | 640x512 |
| Pixel pitch | 12 µm |
| Frame rate | 50 Hz |
| Spectral range | 8–14 µm |
| Sensitivity (NETD) | <20 mK |
| OPTICS | |
| Objective lens | 50 mm |
| Base magnification | 2.7x |
| Smooth digital zoom | 2.7–14x |
| Field of view @ 100 m (W x H) | 15.35 x 12.3 m |
| Focus | Finger-wheel focusing |
| DISPLAY | |
| Display | OLED 1024x768 |
| Colour palettes | 8 |
| RANGE PERFORMANCE | |
| Detection range (1.7 m target) | 3541 m |
| Recognition range (1.7 m target) | 1180 m |
| LASER RANGEFINDER | |
| Measuring range | 5–1200 m |
| Accuracy | ±1 m |
| Laser class | Class 1 (IEC 60825-1:2014) |
| Design | LIIR laser-in-lens |
| RECORDING & CONNECTIVITY | |
| Photo and video | Yes |
| Audio recording | Yes |
| Internal memory | 32 GB |
| External video | Wi-Fi |
| Firmware update | Via app |
| POWER | |
| Battery | Dual battery (built-in plus removable external) |
| Operating time | Up to 10 h (at 22 °C) |
| External power | 5 V USB-C |
| Quick charge | 90% in about 1 hour |
| PHYSICAL & ENVIRONMENTAL | |
| Protection rating | IP67 |
| Operating temperature | -20 °C to +50 °C |
| Storage temperature | -40 °C to +70 °C |
| Weight (without external battery) | 560 g or less |
| Dimensions | 61 mm dia. x 193 mm or less |
| Warranty | 3 years |
| Brand | Conotech |
| Part number | COAQ650LII |
Watch It in Action
Frequently Asked Questions
How does it compare with the rest of the Aquila range?
Aquila 325: 384x288, 25 mm, 2.4–10x, detection 1770 m, no LRF; Aquila 335: 384x288, 35 mm, 3.3–13.8x, detection 2479 m, no LRF; Aquila 3D 19/38: 384x288, dual 19/38 mm, detection 1346/2692 m, no LRF; Aquila 3D 25/50: 384x288, dual 25/50 mm, detection 1770/3541 m, no LRF; Aquila 350LIIR: 384x288, 50 mm, 4.8–20x, detection 3541 m, 1200 m LRF; Aquila 635: 640x512, 35 mm, 1.9–10x, detection 2479 m, no LRF; Aquila 6D 19/38: 640x512, dual 19/38 mm, detection 1346/2692 m, no LRF; Aquila 6D 25/50: 640x512, dual 25/50 mm, detection 1770/3541 m, no LRF; Aquila 650LIIR: 640x512, 50 mm, 2.7–14x, detection 3541 m, 1200 m LRF. Detection figures are for a 1.7 m target.
How far can it see?
Conotech rates detection of a 1.7 m target at 3541 m and recognition at 1180 m. Detection means spotting a heat source; telling what the animal is happens at much shorter range and varies with weather and terrain.
How long does the battery last?
Up to 10 hours at 22 °C using the built-in and external batteries together. The external battery can be swapped without turning the unit off, and quick charge reaches 90% in about an hour.
Is there an app?
Yes. Wi-Fi provides external video output, and firmware can be updated through the app.
How accurate is the rangefinder?
It measures from 5 m to 1200 m with ±1 m accuracy, and the LIIR design keeps the laser and thermal axes aligned.
Australian stock, with local warranty and service support through the Australian distributor. Questions about this model? Get in touch and we'll help you choose.
