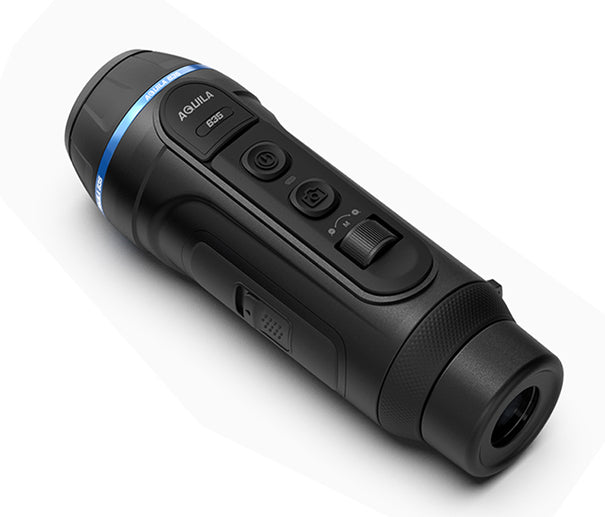

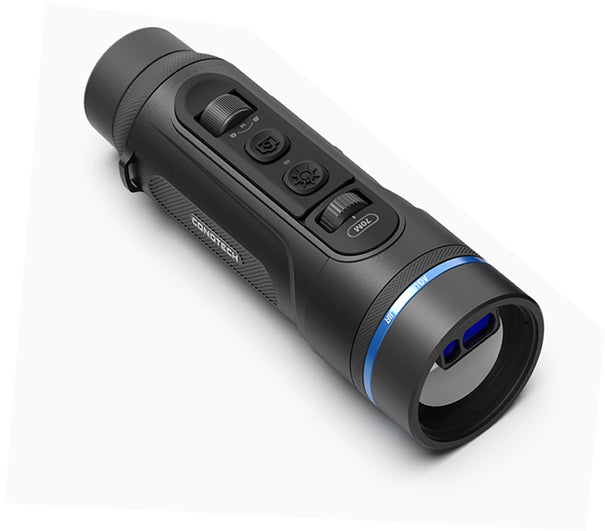

Conotech's Aquila series are compact thermal monoculars built around genuine one-hand use, with finger-wheel focusing, a highly sensitive 12 µm sensor and a dual-battery system that runs for up to 10 hours and can be hot-swapped in the field.
The Aquila 6D 25/50 combines a high-resolution 640x512 sensor with a dual field-of-view lens: a wide 25 mm view for finding animals and a narrow 50 mm view for identifying them, with one focus. Conotech rates detection of a 1.7 m target at up to 3541 m.
At a Glance
| 640x512, 12 µm, <20 mKSensor | 25/50 mm dual FOVLens | 1.4–7.3x / 2.7–14xMagnification |
| Up to 3541 m (1.7 m target)Detection | Up to 10 h, dual batteryBattery | 600 g or lessWeight |
Key Features
- Highly sensitive sensor – A 12 µm uncooled VOx detector with NETD under 20 mK keeps detail clear in fog, rain, dust and low-contrast conditions.
- Dual field-of-view lens – Switch between a wide 25 mm view for detection and a narrow 50 mm view for identification, with a single focus.
- True one-hand operation – Finger-wheel focusing works equally well for left- and right-handed users.

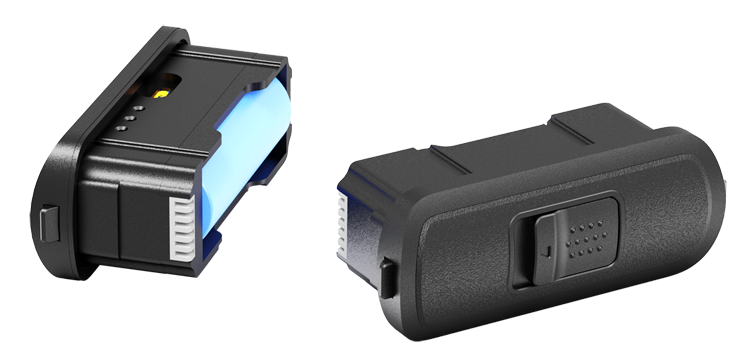

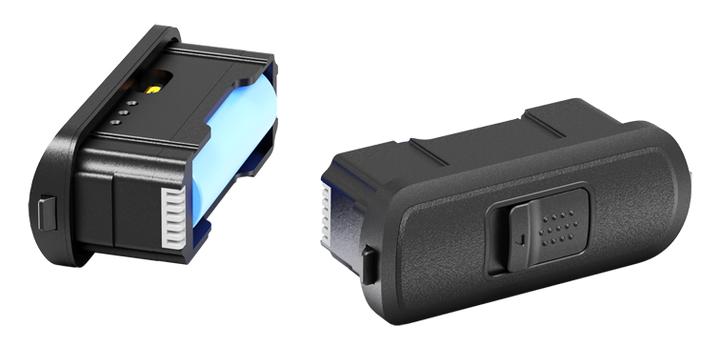

- Dual battery, 10 hours – A built-in battery plus a removable external battery give up to 10 hours of use.
- Non-stop power – Swap the external battery without switching the device off.
- Quick charge – Reaches 90% charge in about one hour; the battery compartment doubles as a stand-alone charger.
- Spectacle friendly – An eyepiece adjustment mechanism makes viewing easier for glasses wearers.
- Record and share – Photo, video and audio recording to 32 GB of built-in memory, with Wi-Fi video output.
- IP67 rated – Sealed against dust and water for hard field use.
Best For
- Sweeping big open country wide, then zooming in to identify
- Pig and fox control across large properties
- Spotting for a partner at long range
Specifications
| DETECTOR | |
|---|---|
| Type | Uncooled VOx |
| Resolution | 640x512 |
| Pixel pitch | 12 µm |
| Frame rate | 50 Hz |
| Spectral range | 8–14 µm |
| Sensitivity (NETD) | <20 mK |
| OPTICS | |
| Objective lens | 25/50 mm dual field of view |
| Base magnification | 1.4x / 2.7x |
| Smooth digital zoom | 1.4–7.3x / 2.7–14x |
| Field of view @ 100 m (W x H) | 30.7 x 24.6 m (25 mm) / 15.35 x 12.3 m (50 mm) |
| Focus | Finger-wheel focusing |
| DISPLAY | |
| Display | OLED 1024x768 |
| Colour palettes | 8 |
| RANGE PERFORMANCE | |
| Detection range (1.7 m target) | 1770 m (25 mm) / 3541 m (50 mm) |
| Recognition range (1.7 m target) | 590 m (25 mm) / 1180 m (50 mm) |
| RECORDING & CONNECTIVITY | |
| Photo and video | Yes |
| Audio recording | Yes |
| Internal memory | 32 GB |
| External video | Wi-Fi |
| Firmware update | Via app |
| POWER | |
| Battery | Dual battery (built-in plus removable external) |
| Operating time | Up to 10 h (at 22 °C) |
| External power | 5 V USB-C |
| Quick charge | 90% in about 1 hour |
| PHYSICAL & ENVIRONMENTAL | |
| Protection rating | IP67 |
| Operating temperature | -20 °C to +50 °C |
| Storage temperature | -40 °C to +70 °C |
| Weight (without external battery) | 600 g or less |
| Dimensions | 61 mm dia. x 205 mm or less |
| Warranty | 3 years |
| Brand | Conotech |
| Part number | COAQ6D2550 |
Watch It in Action
Frequently Asked Questions
How does it compare with the rest of the Aquila range?
Aquila 325: 384x288, 25 mm, 2.4–10x, detection 1770 m, no LRF; Aquila 335: 384x288, 35 mm, 3.3–13.8x, detection 2479 m, no LRF; Aquila 3D 19/38: 384x288, dual 19/38 mm, detection 1346/2692 m, no LRF; Aquila 3D 25/50: 384x288, dual 25/50 mm, detection 1770/3541 m, no LRF; Aquila 350LIIR: 384x288, 50 mm, 4.8–20x, detection 3541 m, 1200 m LRF; Aquila 635: 640x512, 35 mm, 1.9–10x, detection 2479 m, no LRF; Aquila 6D 19/38: 640x512, dual 19/38 mm, detection 1346/2692 m, no LRF; Aquila 6D 25/50: 640x512, dual 25/50 mm, detection 1770/3541 m, no LRF; Aquila 650LIIR: 640x512, 50 mm, 2.7–14x, detection 3541 m, 1200 m LRF. Detection figures are for a 1.7 m target.
How far can it see?
Conotech rates detection of a 1.7 m target at 1770 m (25 mm) / 3541 m (50 mm) and recognition at 590 m (25 mm) / 1180 m (50 mm). Detection means spotting a heat source; telling what the animal is happens at much shorter range and varies with weather and terrain.
How long does the battery last?
Up to 10 hours at 22 °C using the built-in and external batteries together. The external battery can be swapped without turning the unit off, and quick charge reaches 90% in about an hour.
Is there an app?
Yes. Wi-Fi provides external video output, and firmware can be updated through the app.
Does it have a laser rangefinder?
No. In the Aquila range, the 350LIIR and 650LIIR have the built-in 1200 m rangefinder.
Australian stock, with local warranty and service support through the Australian distributor. Questions about this model? Get in touch and we'll help you choose.
